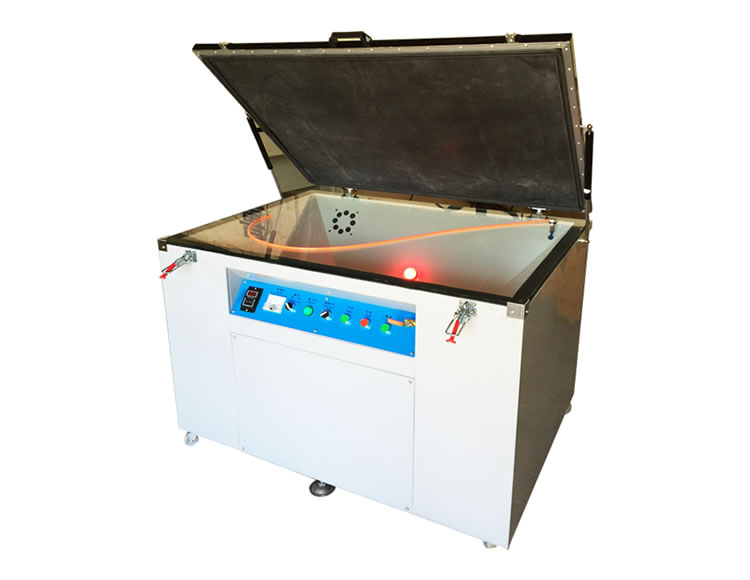

雙面精密曝光機

精密曝光機,北京正盛鴻成電子科技有限公司集技術研發、設備制造、產品加工、技術培訓為一體的先進工藝設備制造商,有曝光機,PCB蝕刻...

立即咨詢

24小時熱線：13581968469

產品詳情

精密曝光機,北京正盛鴻成電子科技有限公司集技術研發、設備制造、產品加工、技術培訓為一體的先進工藝設備制造商,有曝光機,PCB蝕刻設備,化學蝕刻設備,標牌蝕刻機,精密曝光設備廠家

設備名稱：LED曝光機 Machine Name：LED Exposure machine
設備型號 model	LED650
有效曝光面積 exposure size	900mm×650mm
panel knees	900mm×650mm
光源類型	冷光LED
light source	UVLED
平行角 Parallel angle	<5o
能量均勻度	≥85%
Energy uniformity	≥85%
曝光臺面	麥拉&光學強化玻璃
Exposure table	Mylar vs Tempered glass
框架運動控制	伺服驅動
Frame motion control	servo drive control
設備尺寸 Machine size	265014501800mm
設備重量 weight	850kg
電力需求 power	3Φ380V 50Hz 10KW
冰水需求 Cooling water	外置1.5匹冰水機
冰水需求 Cooling water	ice water machines outside
使用環境 Use of the environment	溫度20±3°C
	濕度55%±10
	無塵車間
LED曝光機的設備特點： 1，此LED曝光機為UVLED節能型光源，減少電能消耗超過80%； 2，精密二次光學設計，陣列式組合，使光源平行角<5o； 3，UVLED光源僅在基板曝光時自動點亮，沒有待機損耗； 4，LED為純UV光源，不含紅外光，避免因熱量造成菲林脹縮，穩定影像轉移品質。 LED Exposure machine features: 1, This LED Exposure machine is UVLED Energy saving light source reduces power consumption by more than 80% 2, Precision two optical design, array combination, make the light source parallel angle <5o 3, The UVLED light source is automatically illuminated only when the substrate is exposed, and there is no standby loss. 4, LED is a pure UV light source. It does not contain infrared light. It can avoid the expansion and contraction of morin caused by heat and stabilize the quality of image transfer.
