激光類型/波長

Laser type/Wavelength

YLP/1064nm

激光輸出功率(按需)

Laser power

10W

20W

30W

50W

激光光束質量M2

Beam quality M2

<3

激光脈沖寬度

Pulse width

≤100ns

脈沖重復頻率

Pulse repetition frequency

20kHz ~ 200kHz

功率穩定性>4h

Power stability>4h

+/-2% rms

激光模式

Laser mode

TEM00

打標范圍

Marking size

100mm x 100mm
180mm x 180mm 或 訂制更大/or Order

打標深度

Marking depth

可調

Adjustable

標記速度

Marking speed

250字符/s

Character/s

Min打標線寬

Marking width Min

0.03mm(30μm)

Min字符大小

Marking character Min

0.3mm

重復打標精度

Repeat marking accuracy

≤10μ/rad

耗電功率

Power total

≤800W

電力需求

Power supply

AC 220V/50Hz

整機尺寸(參考)

Machine  Size

570*840*1240mm

光纖激光打標設備介紹

光纖激光打標設備是利用激光束在各種不同的物質表面打上持久的標記。打標的效應是 通過表層物的蒸發露出深層物質，或者是通過光能導致表層物質的物理變化而“刻”出痕跡，或者是通過光能燒掉部分物質顯出所需刻蝕的圖案、文字、條形碼等各類圖形。

設備特點：

·  全風冷系統，無需維護；

·  性能穩定，整機免維護時間可達到100,000小時；

·  各類金屬材質及部分非金屬材質打標，可進行深度標刻,適用性很強；

·  與計算機配合，可隨意更改標刻圖形和參數；

·  激光光斑小,打標線條細,標刻效果精細，有防偽性。

應用行業：

·  對深度、光滑度、精細度要求較高的領域；

·  所有金屬，如鋁片、不銹鋼、銅件、五金制品等；

·  手機按鍵、塑膠透光按鍵；

·  電子元器件、集成電路（IC）；

·  電工電器、通訊產品、標牌；

·  衛浴潔具、五金制品；

·  工具配件、精密器械；

·  PVC管材、醫療器械等行業。

Fiber laser marking machine introduction

Fiber laser marking machine works with a laser beam on a variety of materials and makes the permanent mark. The theory is exposing the deep material by evaporating the surface substances, or surface material physical changing or burning by focused light energy, so that pattern, text, bar code and other graphics will be marked.

Advantages:

·  Air cooling system, no maintenance;

·  Stable performance, life time can reach 100,000 hours;

·  All kinds of metal materials and some non-metallic materials marking;

·  Free to change the marking graphics and parameters;

·  Marks are anti-falsification, more fine and unique.

Applications:

·  Areas with depth, smoothness and finer requirements;

·  All kind of metals, such as aluminum, stainless steel, copper etc.

·  Mobile phone keypad, plastic translucent keys;

·  Electronic components, integrated circuits (IC), PCB;

·  Electrical appliances, communication products, signage;

·  Sanitary ware, hardware products;

·  Tool accessories, precision instruments;

·  PVC pipes, medical instruments.

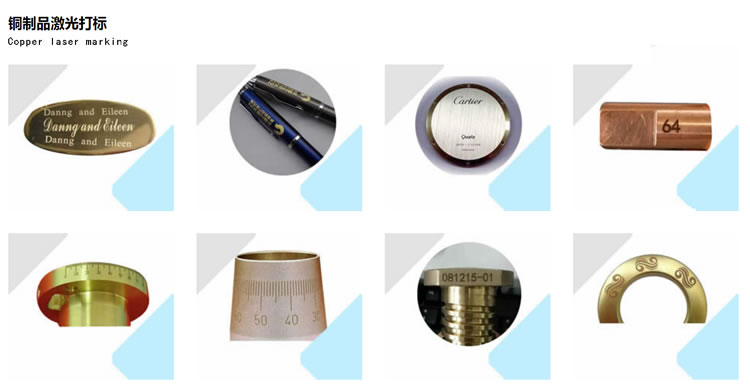

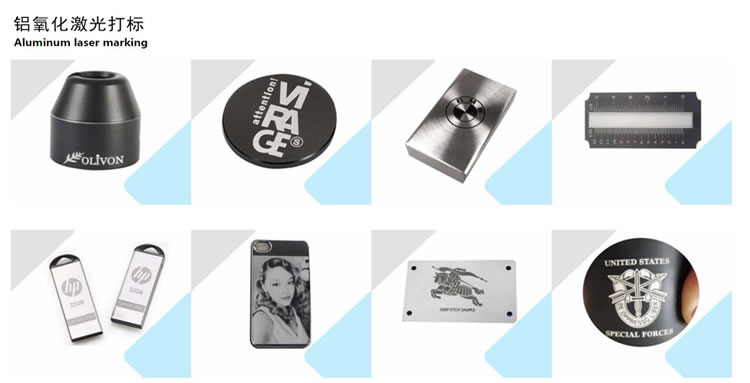

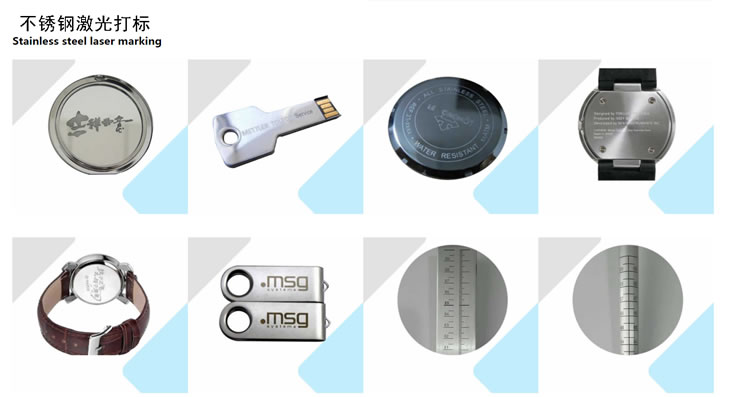

光纖激光打標設備樣品

Samples for Fiber Laser Marking Machine
